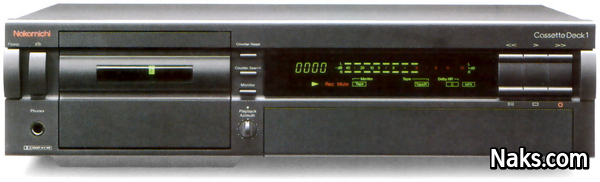

Nakamichi Cassette Deck 1 Cassette Deck

This Nakamichi Cassette Deck 1 is a stereo cassette deck with Dolby B and C noise reduction, it was first sold by Nakamichi in 1990 with a recommended retail price of USD $879 and discontinued 2 years later in 1992.

The main features of the Nakamichi Cassette Deck 1 cassette deck are: 3 discrete heads and off-tape monitoring, digital tape counter with 4 digits, manual tape type selection and capable of handling normal, chrome and metal tapes with automatic equalization selection, dual-capstan transport driven by a gear.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well which is opened by a damped mechanism.

Level meters used on the Nakamichi Cassette Deck 1 cassette deck are digital FL peak reading meters. Full-logic transport controls used on the Nakamichi Cassette Deck 1 let it respond to the slightest finger contact for fast and effortless transport function selection.

Manual playback azimuth correction provides controls to manually adjust the azimuth of the Cassette Deck 1s playback head to the azimuth the tape was recorded with so playback on the {0} is possible with the best sound quality.

Dolby C-type used in the Nakamichi Cassette Deck 1 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the Cassette Deck 1 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

• Diffused-Resonance Transport
• Pressure pad lifter
• Double Capstan
• Silent Mechanism
• Microprocessor Control
• Asymmetrical Dual Capstans
• Discrete 3-Head Technology
