Naks.com Nakamichi 700II

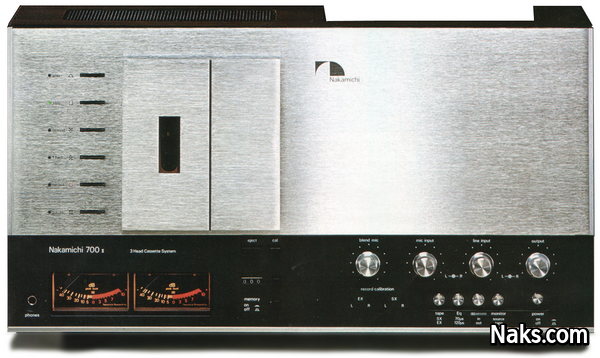

This Nakamichi 700II is a stereo cassette deck with Dolby B noise reduction, it was first sold by Nakamichi in 1977 with a recommended retail price of USD $1,140 and discontinued 3 years later in 1980.

The main features of the Nakamichi 700II are: 3 heads and off-tape monitoring, mechanical 3 digit tape counter and memory stop, manual tape type selection and capable of handling normal and chrome tapes, belt driven dual-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed sideways in the cassette well.

Level meters used on the 700II are analog needle VU reading meters. Full-logic transport controls used on the 700II let it respond to the slightest finger contact for fast and effortless transport function selection. Playback speed may be adjusted with pitch control.

Record azimuth correction. To ensure the best response from the wide variety of tapes available adjustment of, sensitivity, to optimum levels can be performed prior to recording.

The Dolby-B system reduces tape hiss on tapes recorded on the 700II by as much as 10 dB at the highest frequencies. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the 700II filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 3 microphone inputs (for left, right and center channels) to connect a microphone with a DIN connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.
